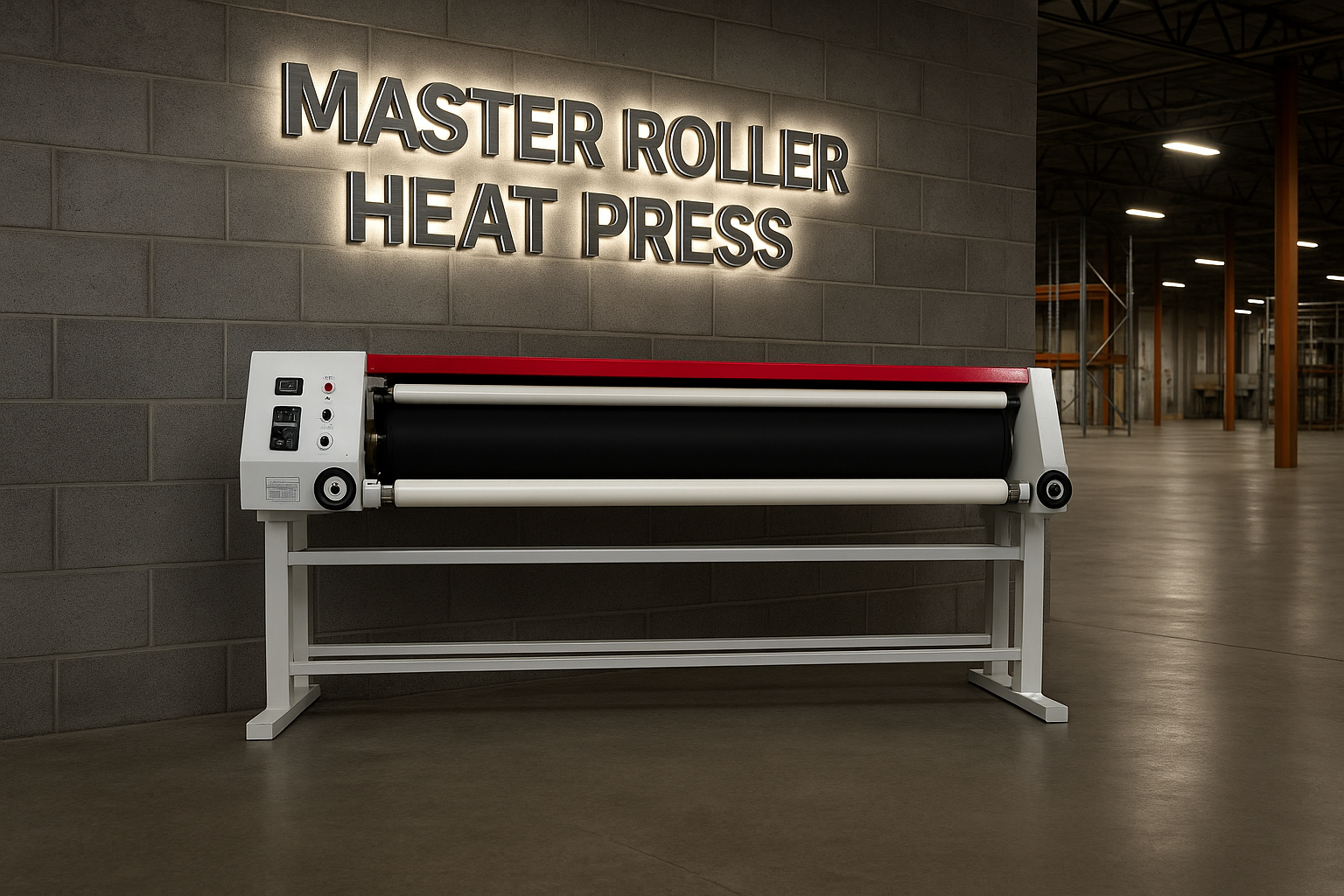

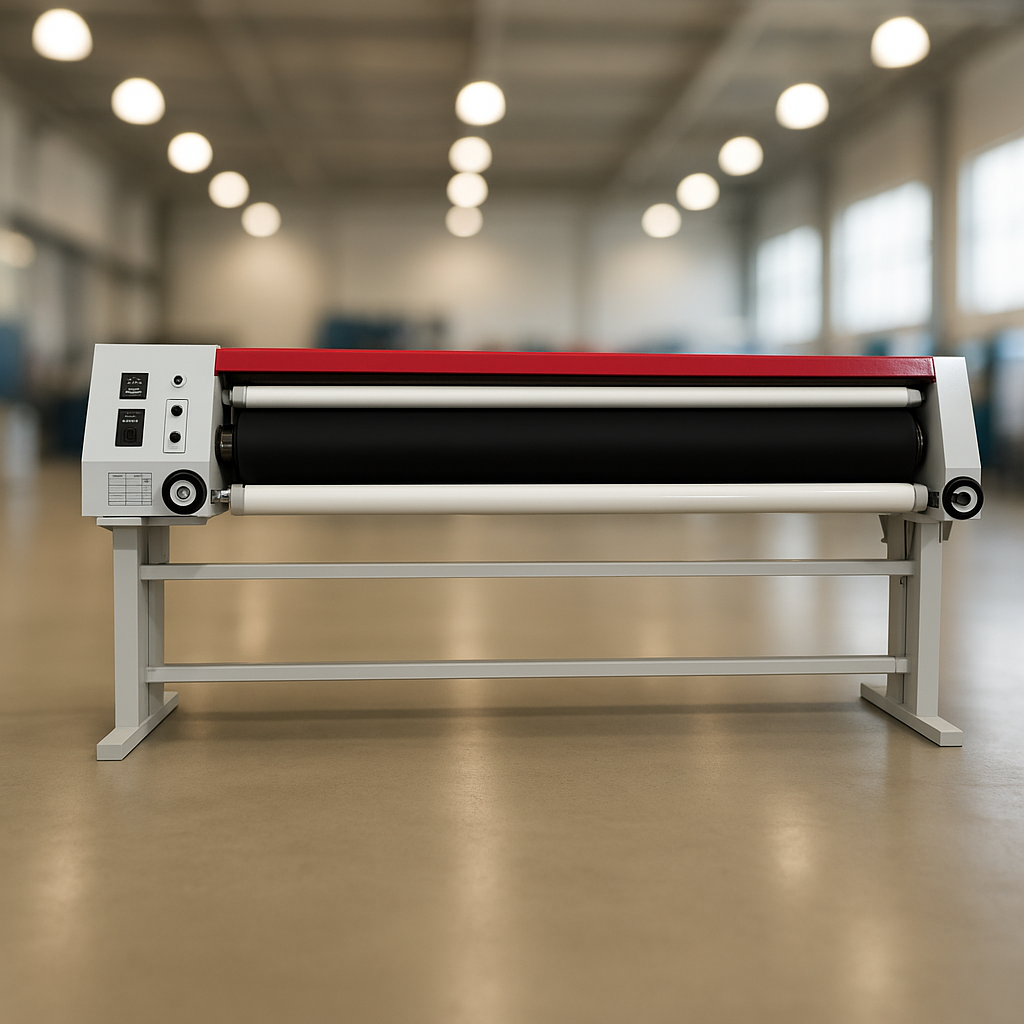

Master Roller Heat Press Machine

• Power Supply: 220V / 380V, 3-phase (depends on size)

• Power Consumption: Approx. 18–45KW (model-dependent)

• Control System: Digital temperature & speed control panel

• Safety Features: Emergency stop, protective cover, auto shut-off

• Feeding System:
  ▪ 3 blanket layers for continuous printing
  ▪ Automatic belt alignment system
  ▪ Multiple feeding rollers for fabric, sublimation paper & tissue

✅ Advantages / Features

• Uniform heating for consistent, high-quality transfers

• Suitable for both roll-to-roll and piece-to-piece sublimation

• High efficiency for mass production

• Digital control for easy operation & precision

• Durable oil drum ensures long service life & stable performance

• Drum Size: 420mm / 600mm / 800mm (varies by model)

• Heating Method: Oil-filled drum for stable & even heat

• Temperature Range: 0 – 250°C (adjustable)

• Working Width: 1.2m / 1.7m / 1.9m / 2.6m (model-dependent)

• Transfer Speed: 0–6 m/min (adjustable)
